Head cutting machine
Hot selling stainless steel automatic oil tank head cutting machine
Product Description

Hot selling stainless steel automatic oil tank head cutting machine


Hot selling stainless steel automatic oil tank head cutting machine

Table rotation:

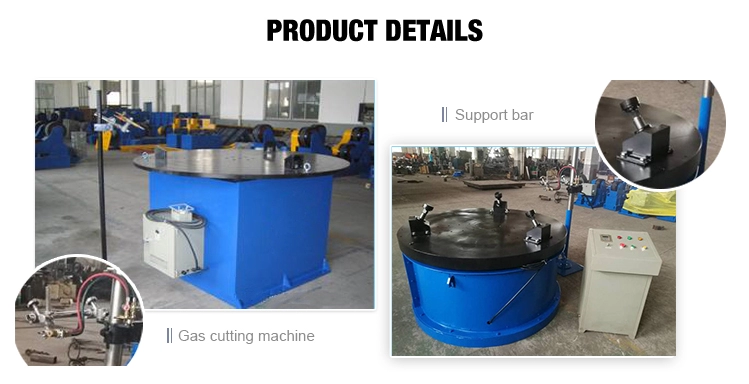

      The head cutting machine consists of a table, a base and a turning mechanism. The transmission system has a self-locking mechanism. Electrical control consists of an electrical box and a remote box.

      There is a control board in the electric control box. The board is composed of a frequency converter, fuses, control transformers, contactors and connection terminals. This part mainly controls the motor's on and off, and realizes the positive and negative actions of the worktable.The roller rack can be commissioned and operated by an electric control box and a remote box.

      The table can be rotated in any direction within its own plane. The control switch on the electrical box can be used, or the remote box can be used to start or stop the rotation. The transmission process is: motor two-stage reducer  mesa.

Equipment lubrication:

      The worm gear reducer is lubricated with lubricating oil, the tilt adjustment mechanism and the bearings are lubricated with grease, and the lubricating oil and grease should be replaced regularly. Lubricate before operation.

Precautions:
     When connecting to the power supply, the following conditions must be met: when turning upside down, the worktable rotates clockwise. When working in the opposite direction, the worktable rotates counterclockwise. Otherwise, the angle is automatically limited and it will not operate normally.

Hot selling stainless steel automatic oil tank head cutting machine

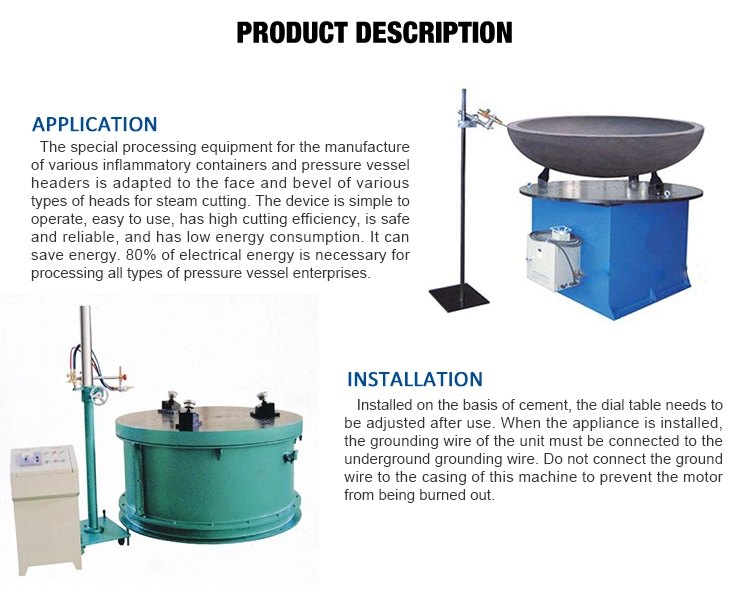

       Cutting machines consist of rotary table.gas cutting machine and electrical control cabinet.which is used for the gas cutting of various seal sides and champers.1t is characterized by conve-nient operation,high cutting efficiency,good safety and stability,and low energy consumption .

 Want to see this tank head cutting machine more information!

whatsapp/mob:0086-13322202758


  Modle Choice

modle

platform diameter (mm)

cutting diameter (mm)

moter power (kw)

rated loading(T)

FQ-12

Φ600

Φ200-Φ1200

0.55

1.5

FQ-15

Φ1200

Φ300-Φ1500

0.75

3

FQ-35

Φ1400

Φ300-Φ3500

1.1

4

FQ-35

Φ1600

Φ300-Φ5500

2.2

5



            Want to know this tank head cutting machine more information!         Contact us>>



Hot selling stainless steel automatic oil tank head cutting machine

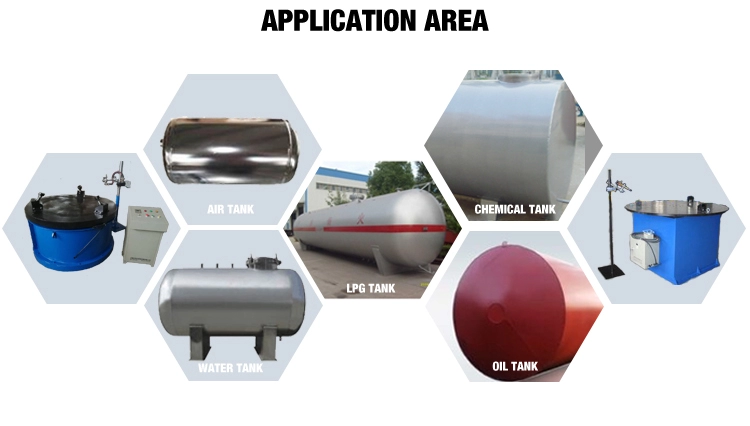

     Tank head cutting machine finished products are used in many fields,such as air tank ,water tank ,LPG tank ,chemical tank ,oil tank etc.

Want to know this dish end machine more solution&applicaton!

whatsapp/mob:0086-13322202758
